HRST-150Z 150kgf Rockwell Hardness Tester Fully Automatic

Product Categories
SHANGHAI JU HUI INSTRUMENT MANUFACTURING CO., LTD
Contact Now

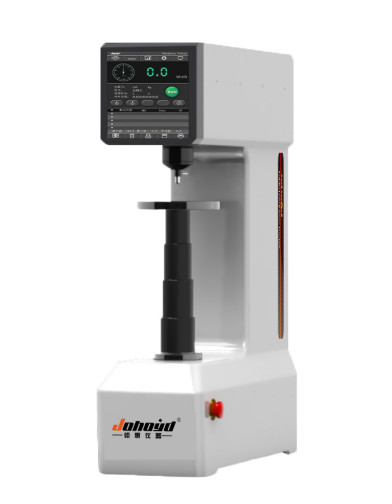

HRST-150Z 150kgf Rockwell Hardness Tester Fully Automatic

  • 1
  • 2

Brand Name : Johoyd

Model Number : HRST-150Z

Certification : Certificate Of Compliance

Place of Origin : CN

MOQ : 1Set

Price : Ask the price privately

Payment Terms : T/T

Delivery Time : 3-15work days

Packaging Details : Wooden packing

Hardness value display : Touch screen

automatic completion : Apply pressure, hold pressure, unload pressure

Test force : 60kgf、100kgf、150kgf

Contact Now

Fully automatic Rockwell hardness tester / -Automatic Rockwell Hardness Tester

The full-auto Rockwell hardness tester series is a new generation of high-tech and intelligent products. The shell adopts integrated casting, the surface of the car paint treatment process, the shape is novel, has good reliability, operability and repeatability, and has complete functions, one-key operation, Fully automatic measurement, clear and intuitive display. With automatic loading and unloading test force, hardness test of the whole series of Rockwell scales can be carried out. The hardness tester can be equipped with XY automatic moving platform, automatic programming, automatic dotting, suitable for end quenching test; optional PC computer, through multiple computers to achieve control and measurement of the hardness tester, and can perform statistical analysis on the data, and issue Test report, etc. The test report can also be customized according to user requirements.

Function

Automatic Rockwell Hardness Tester
model HRST-150Z
Support 15 kinds of Rockwell measurement scales

Yes
Support fully automatic XY platform (optional)

Yes
Support PC software to control the machine (optional)

Yes
Automatically switch loading test force

Yes
One-click test

Yes
Support wireless Bluetooth printer (optional)

Yes
Large-capacity data storage

Yes
Chinese and English conversion

Yes

HRST-150Z 150kgf Rockwell Hardness Tester Fully Automatic

Product configuration:

project Parameter data
parameter name Automatic Rockwell Hardness Tester
Initial test force 10kgf
Total test force 60kgf,100kgf,150kgf
Measuring standard ruler HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK,HRL,HRM,HRP,HRR,HRS,HRV
Unit conversion Brandt, Rockwell, Victorinox
Conversion standard ASTM,ISO,GBT
Hardness display 8-inch color touch screen
Display accuracy (HR) 0.1
Hold time 3-60SCan be set
Load control Automatic
Lifting system control Automatic
Hardness value calibration Yes
Arc correction compensation

Yes
Test force compensation

Yes
Qualified judgment

Yes
Statistics Automatic calculation of maximum, minimum, average, maximum error, test times, etc.
Data output Printer, communication interface, PC
Maximum height of test piece (mm) 300
Distance from indenter to machine (mm) 170
Weight (Kg) 100
